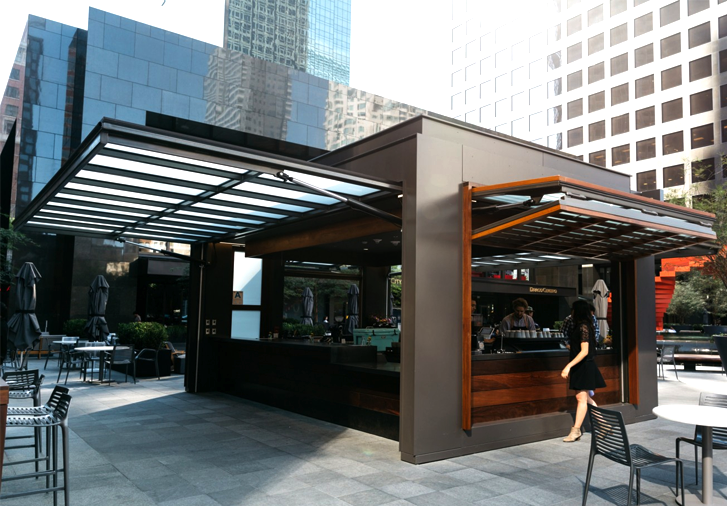

The Single-Swing is a premier quality hydraulically-operated single-piece door/window. The Single-Swing offers various range of sizes, the largest clear opening height and quick speed. The Single-Swing hydraulic system is perfect for any application from industrial facilities to commercial storefronts.
Our steel-tube panels and integral mounting frame are shipped standard with red-oxide primer and are ready for field finishing. For corrosive environments (sea-side or pool house installations), the panels and frame can be constructed from stainless steel. Both materials may be factory powder-coated in any standard RAL color. The adjacent color chart represents the full range of colors available in the RAL system and does not imply immediate availability.

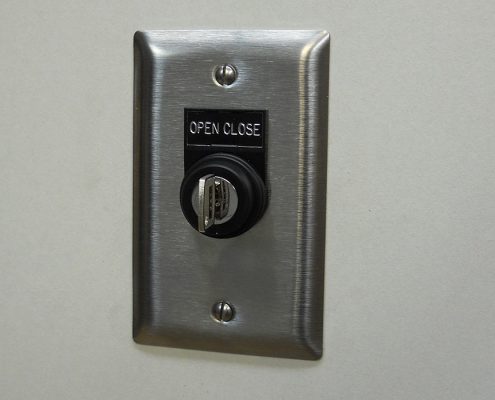

Customers may select from either a standard up/down, 2-button or key control for system operation. For added safety, all controls are constant-contact. A weather-resistant control is also available for outside entry through exterior installations.

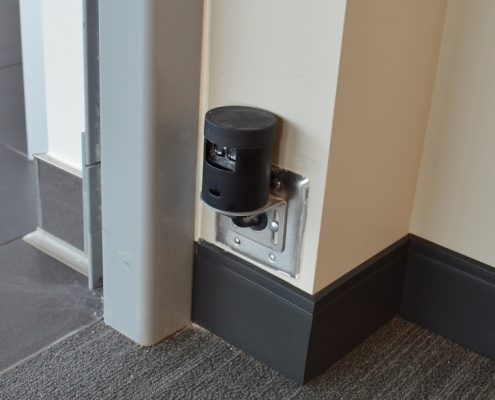

If safety is a concern, or if remote transmitters are required, infrared photo eyes are available for installation adjacent to the hydraulically operated door or window system. Alternatively, a lead-edge sensor may be mounted to the bottom of the hydraulic door/window panel. Both can be programmed to either stop or stop and reverse the motion of the door or window panels. As a final layer of safety, a single-unit warning horn and strobe light which will indicate operation of the system is also available.

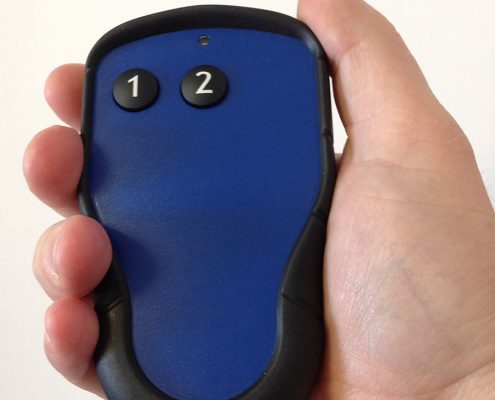

Remote Transmitters offer ease of entry allowing for the user to open or close the hydraulic door or window system on approach. Transmitters – like the standard wall-mounted controls – are constant contact. For safety reasons, the inclusion of either photo eyes or a lead-edge sensor with use of remote transmitters is required.

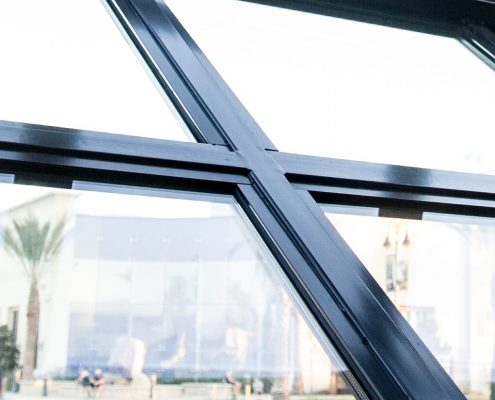

For turn-key products, both inside-sash and front-set glass retainer systems as well as a variety of dual or single pane glazing options are available. All factory-supplied glass is laminated. Customers may also elect to clad their doors in field with a virtually unlimited number of coverings such as polycarbonate, steel or even wood.

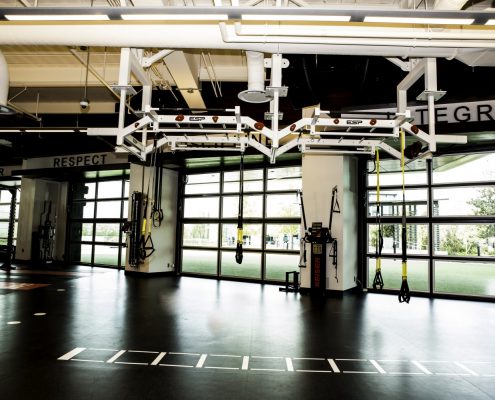

In the event of a power-outage, the hydraulic door or window system may be manually lowered through use of the included release valve. If the system must be opened in the event of a power-outage, and if the building has no generator, a 24v DC battery back-up system is provided. The (2) 12v deep-cycle batteries must be purchased separately.

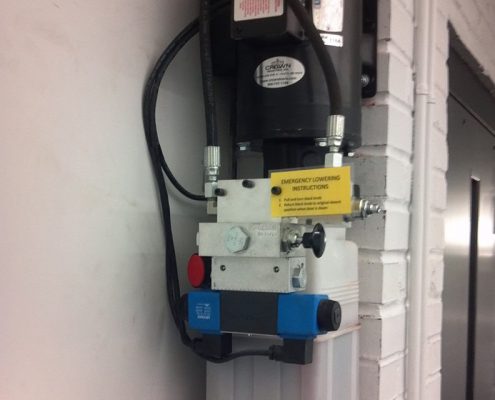

The motor/power unit consists of the motor, pump and hydraulic fluid reservoir. The unit may be located anywhere within the building – Close proximity to the hydraulic door or window is not necessary. Hydraulic hose will route between the motor unit and the door or window system. The new and technically-advanced unit will be shipped with most projects, however, the previous unit will remain available for use where space considerations require it.
